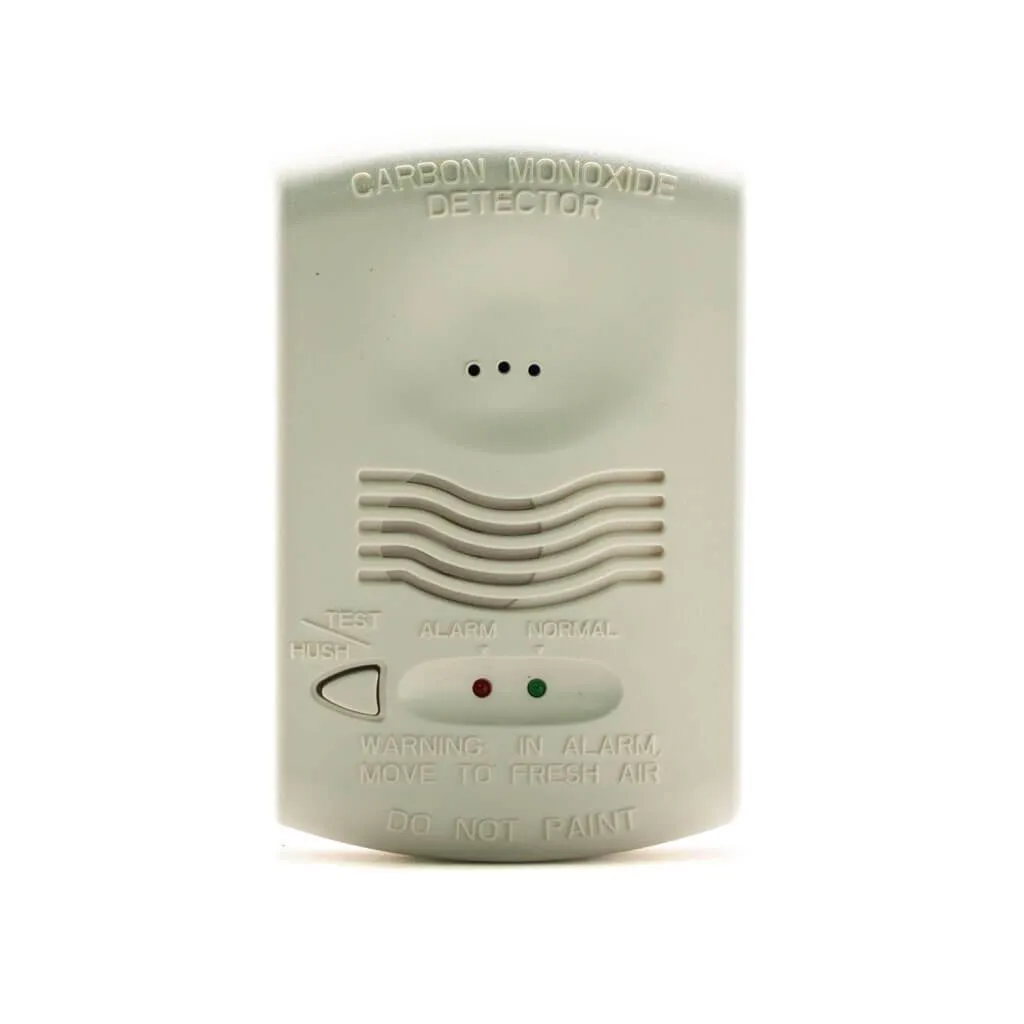

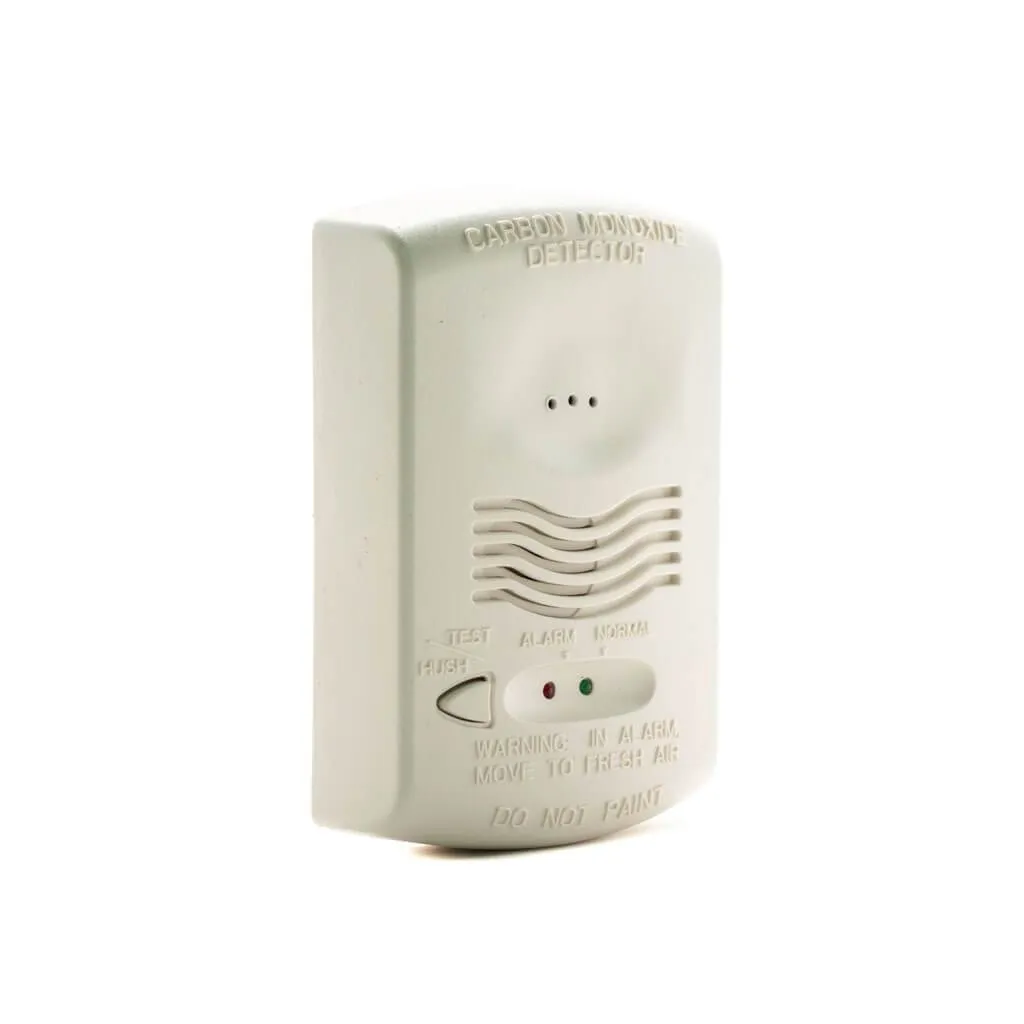

System Sensor CO1224T Carbon Monoxide Detector

The System Sensor CO1224T is a great little unit for keeping you and your family safe from the dangers of carbon monoxide poisoning. The CO1224T is wired to the main panel and installed on the wall of your home or business and will detect any quantity of CO gas in the enivronment for up to 6 years.

This model has a Real Test feature that will allow you to test the detector with a can of canned CO to make sure that it is working properly when you first install it.

Specifications

Electrical Specifications

Operating Voltage 12/24 VDC
Audible Signal 85 dB in alarm
Standby Current 20 mA
Alarm Current 40 mA (75 mA test)
Alarm Contact Ratings 0.5 A @ 30 VDC
Trouble Contact Ratings 0.5 A @ 30 VDC

Physical Specifications

Size: CO1224T Length: 5.1 in, Width: 3.3 in, Height: 1.3 in
CO1224TR Diameter: 6 in, Height: 1.3 in
Approximate Weight CO1224T: 7 oz ; CO1224TR: 11 oz
Operating Temperature Range 32?F to 104? F (0?C to 40? C)
Operating Humidity Range 22 to 90% RH

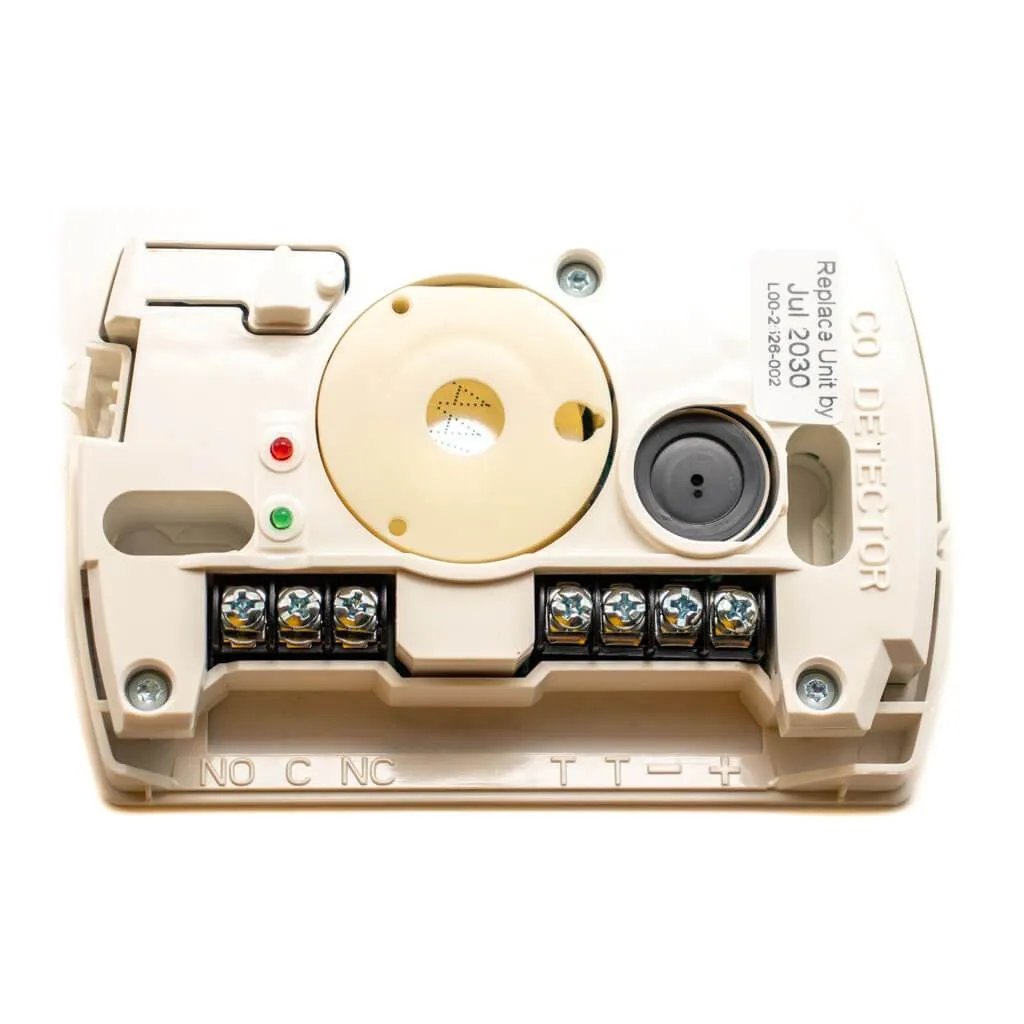

Input Terminals 14 to 22 AWG

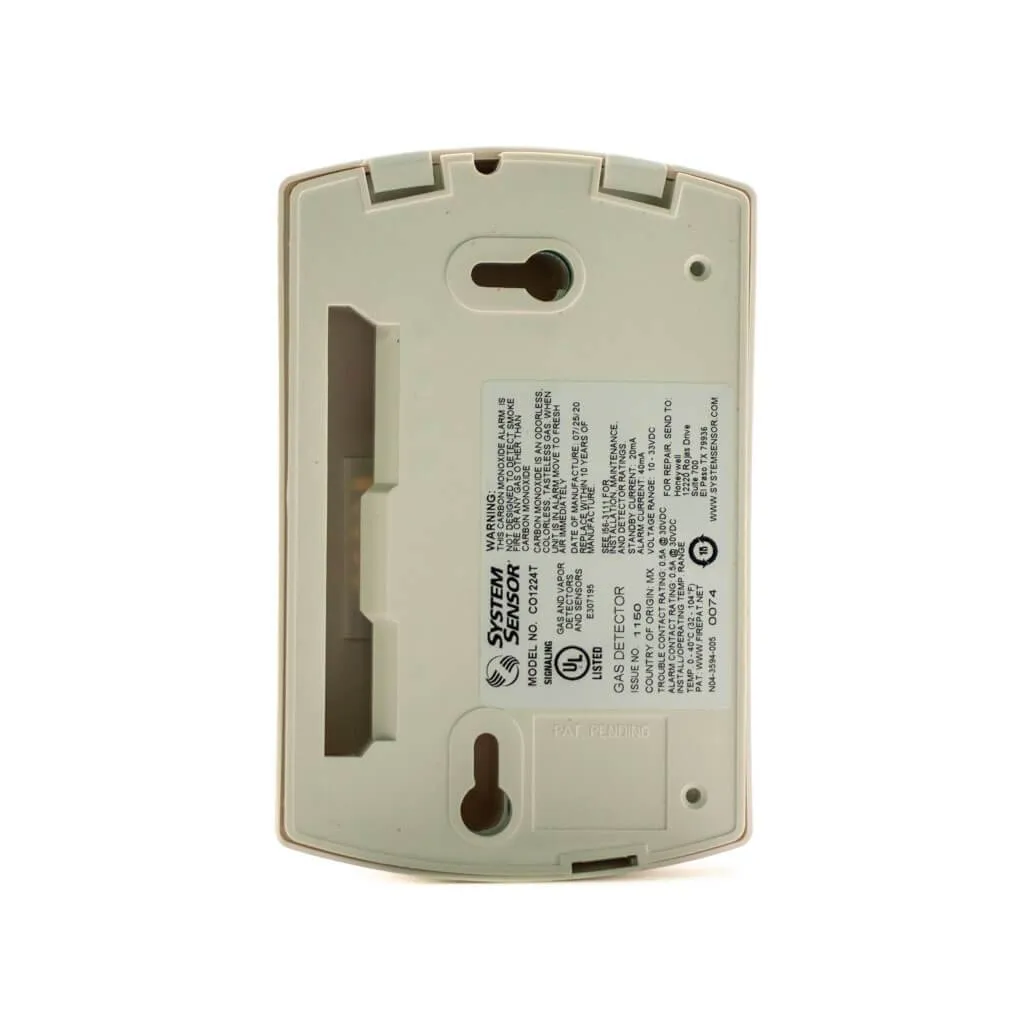

Mounting Single-gang back box; surface mount to wall or ceiling

---

RealTest? enables a functional test using canned CO Full compliance with UL 2075 A code-required trouble relay Wiring supervision with SEMS terminals A six-year end-of-life timer 12/24 VDC A low current draw of 20 mA in standby and 40 mA in alarm Versatile mounting for wall and ceiling Accurate and reliable electrochemical sensing technology Optional CO-PLATE CO Detector Replacement Plate to upgrade previously installed competitor detectors to the CO1224T
