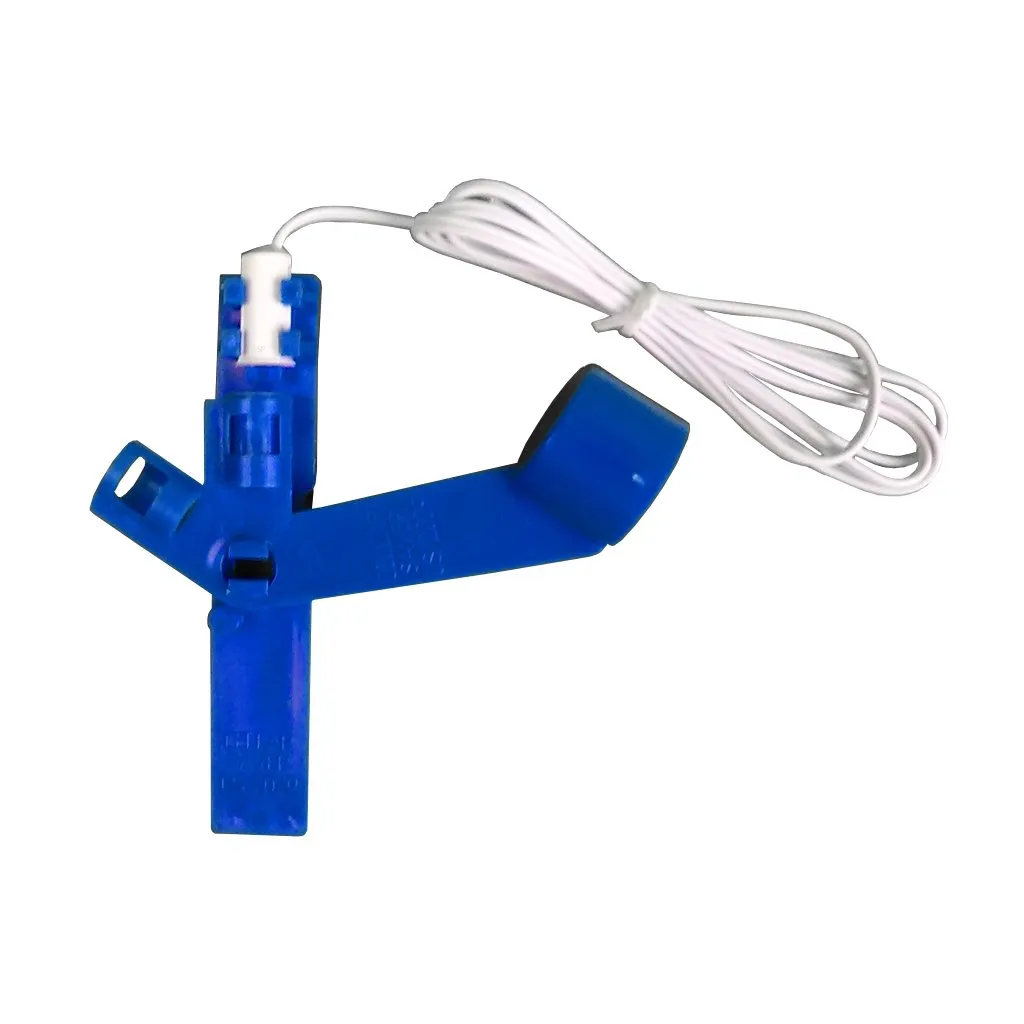

Sump pump alarm float switch CS1829C/O

This sump pump alarm float switch is for use with alarm systems to provide a warning if the water rises too high in the your pump basket / bucket indicating a possible failure in the pump. This is a non powered mechanical device with both a normally open and normally closed magnetic switch.

Specifications:

Overall height............4 1/2"
Overall width............3 "
Total width in alarm...3 9/16"
Width of base............3/4 "
Top of base holds standard 3/8 press fit contact.
Swing-arm top has 1/4 " magnet encased in rust resistant coating.
Swing-arm bottom has inverted air-lock float.
Shipped with an eleven inch tie-wrap for mounting on vertical flow pipe in sump well.
