Product Details
＋
The SBrH-5A Cubic 5% NDIR Methyl Bromide Gas Sensor by Cubic detects 0-5% levels of CH3Br methyl bromide gas in ambient environments.
Features
- Measures 0 to 5% Methyl Bromide by Volume
- Long-life NDIR sensor
- Built-in temperature and humidity compensation
- Auto-Baseline calibration can be enabled
- Precise measurement and stable performance
- ATEX rated for combustible environments
- Serial UART and analog voltage outputs
- Life expectancy > 10 Years
Applications
- Industrial Safety
- Fumigation
- Chemical
- Oil & gas
- Gas drainage monitoring
- Liquefied gas station or transport
Models

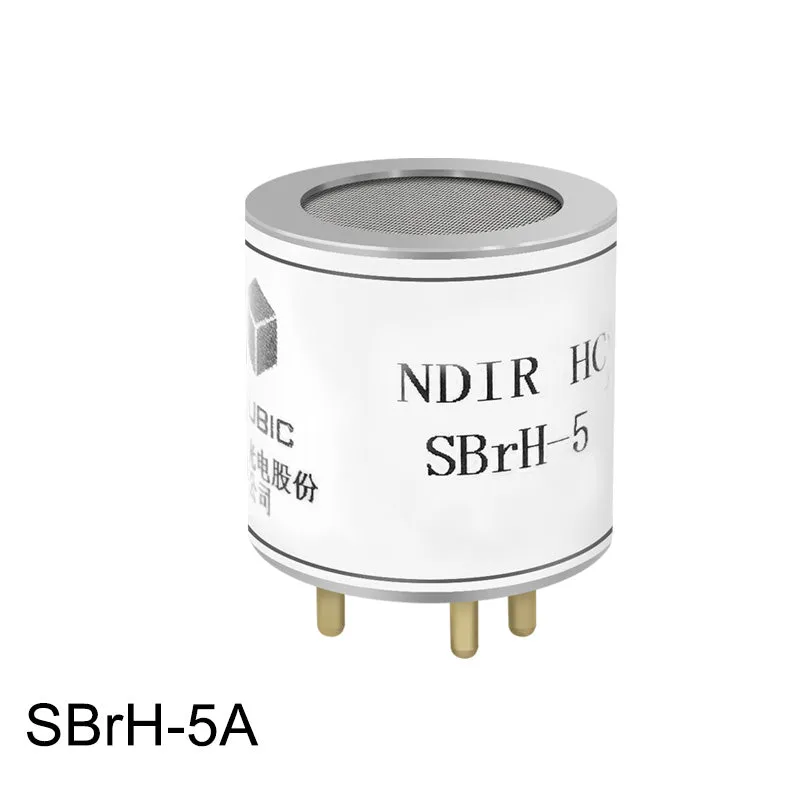

SBrH-5A Methyl Bromide Sensor 0-5% methyl bromide gas sensor, with 'A' housing.

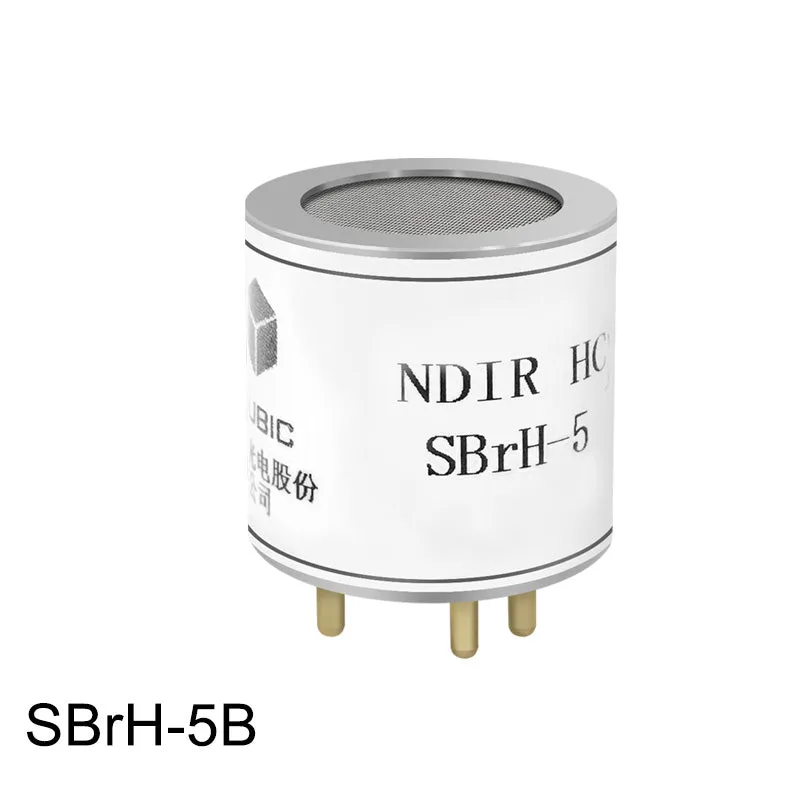

SBrH-5B Methyl Bromide Sensor 0-5%, complimentary design with 'B' housing.
Specifications
- Measuring Gas: Bromomethane
- Sensing Method: NDIR
- Measurement Range: 0-5% Vol
- Measurement Resolution: 0.01%
- Accuracy: ± 0.06% @ 0-1%, ± 6% @ 1% to FS
- Rate of Measurement: 1 sec
- Warm-up time: < 30 sec
- Response Time T90: < 25 sec
- Zero Repeatability: ± 2% at FS
- Zero Drift: 2% FS/month
- Working Temperature: -40° ~ 70°C (-40°F-158°F)
- Working Humidity: 095% RH (Non-condensing
- Storage Temperature: -40° ~ 85°C (-40°F-185°F)
- Working Voltage: 3.3-6VDC
- Working Current: 55-60mA
- Peak Current: 360-400mA @ 5VDC
- Working Pressure: 30~130kPa
- UART Settings: 9,600, 8,N,1
- UART Output: 2.5-3.3V UART-TTL
- Analog Output: 0.4V-2VDC
- Dimensions: 20x19mm (0.79x0.75in)
- Body Material: Stainless Steel
- Weight: 18g
- Output footprint: 5 pins
- Sensor Life Span: > 10 years
- Ex-proof Level: Ex ia IIC T4 Ga GYB19.1789
Warranty
- 90 Days. See CO2Meter Terms and Conditions
Sensor Pin Sockets - Manufacturers do not recommend soldering to the pins. Pin sockets can be purchased from Andon Electric. .
