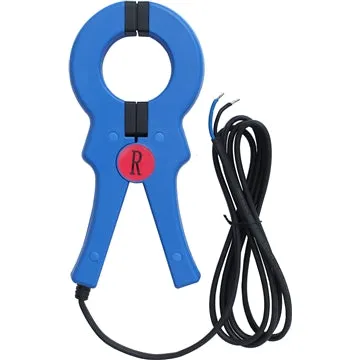

The MECO CCT50 is a high-performance clamp-on current transformer (CT) designed for accurate AC current measurements up to 100A. Its clamp-on design facilitates easy installation without the need to disconnect existing circuits, making it ideal for various electrical applications.

Key Features:

• Clamp-On Design: Enables safe and straightforward installation, allowing measurements without interrupting the circuit.
• Wide Inner Window: Accommodates large cables or bus bars, enhancing versatility in different setups.
• Frequency Range: Operates effectively between 50 Hz and 400 Hz, suitable for various AC applications.
• Core Material: Constructed with silicon steel or permalloy core, ensuring high accuracy and stability.
• Operating Conditions: Functions reliably within a temperature range of -25°C to 75°C and humidity levels below 85%.
• Output Connection: Equipped with a 2-meter UL1015 22AWG twisted wire for easy integration with measurement devices.

Specifications:

• Model: CCT50
• Input Current Range: 100A AC
• Output Current: 5A AC
• Jaw Opening: 50 mm, suitable for clamping around sizable conductors.
• Material: Durable plastic housing for longevity and safety.

Applications:

• Current Measurement: Ideal for monitoring and measuring current in electrical wiring and equipment.
• Power and Energy Monitoring: Suitable for assessing electric motors, lighting systems, air compressors, HVAC systems, and automation control systems.
• Protection Systems: Useful in current and power measurement devices for system protection and maintenance.
