The LOX-O2-F UV Flux Oxygen sensor measures ambient oxygen levels using the principle of florescence quenching by oxygen. This provides the benefits of lower power requirements and a longer lifespan than typical oxygen sensors.
This sensor model includes a tube-cap adapter for closed-system oxygen measurement.
The Development Kit combines the LOX-02 sensor with barometric pressure, temperature and % relative humidity sensors on board with built-in data logging. Measurements can be taken of all sensors using our free Gaslab software.
Combined with MX board the LOX-02 provides accurate oxygen measurement over a wide environmental range without the need for additional system components.
Features
- Low Drift & Cross-sensitivity
- Barometric pressure and temperature sensors built-in
- MX Board allows for easy sensor calibration
- MX Board adds Serial UART output
- Easy Integration; Compact & Low Power
Models

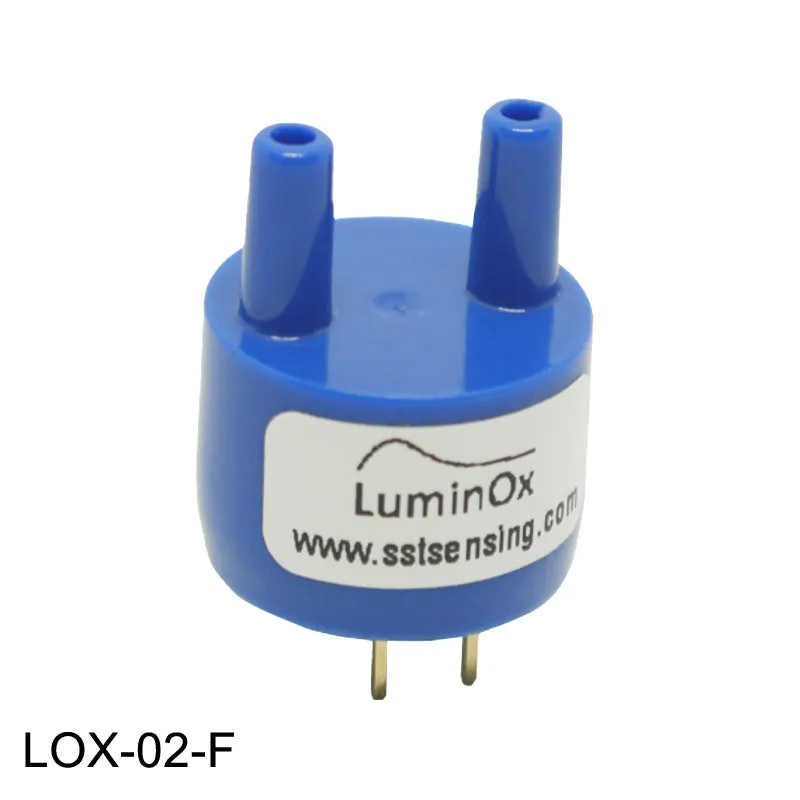

- LOX-O2-F Sensor Only – for integration into high-volume OEM products.

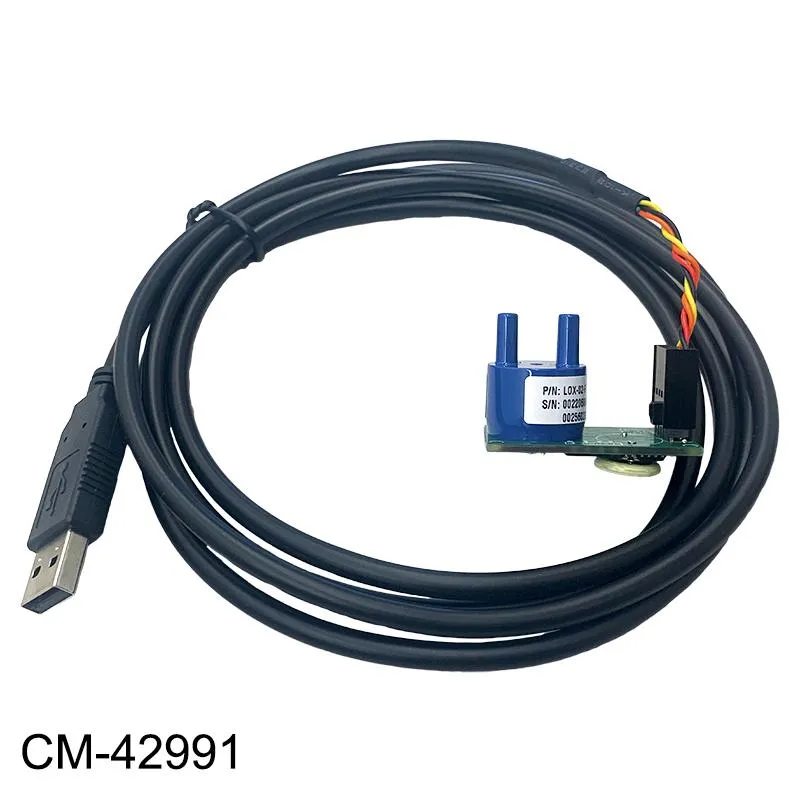

- CM-42991 Development Kit – Easy to use, simply plug the MX Board into your PC via the included Serial UART to USB cable. Use our free GasLab® software to measure and graph oxygen, barometric pressure and temperature of the sample gas. Includes on-board memory for data logging.

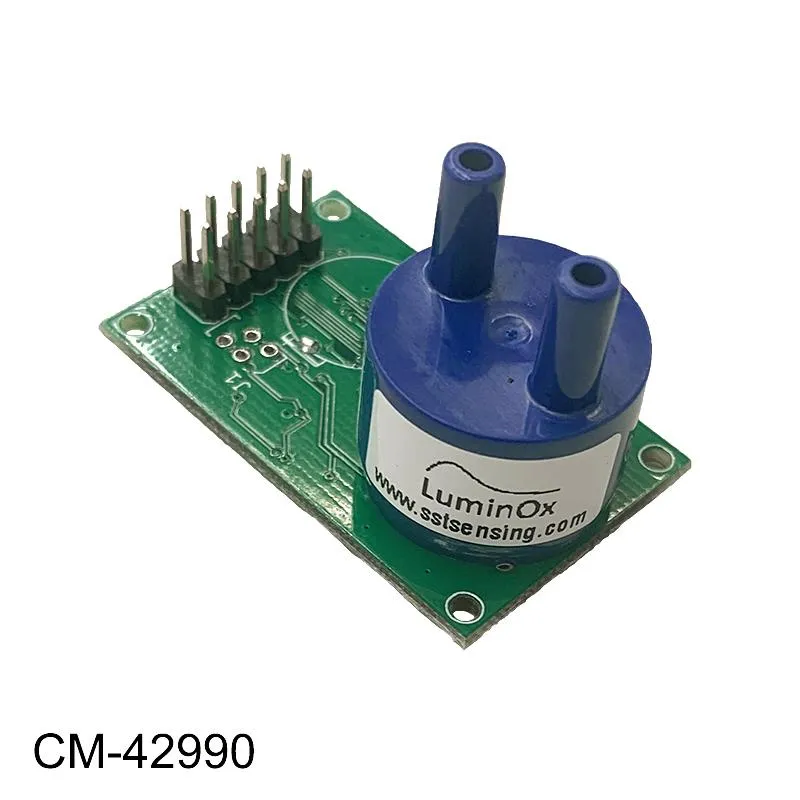

- CM-42990 MX Board – Same functionality as the development kit without USB cable or software.
Specifications
- Measuring Gas: Oxygen
- Measurement Range: 0 to 25% O2
- Sensing Method: Fluorescence quenching by oxygen
- Measurement Interval: 1 Sample/second
- Response Time: < 60 Seconds
- Warm-Up Time: < 60 Seconds at 72°F (22°C)
- Accuracy: < 2% at full scale
- Resolution: 0.01%
- Temperature Accuracy: /- 2 degrees C
- Operating Temperature: -30°C to 60°C
- Barometric Pressure Range: 500 to 1200 mbar
- Lifetime: > 5 years
Electrical / Mechanical
- Voltage: 4.5 - 5.5 VDC
- Current: < 6mA (streaming @ 1 Sample/sec), < 17mA Peak
- Interface: Serial UART or analog
MX Connector: MOLEX 0901420010 0901190109
Warranty
- 90 days
Free Easy-to-use GasLab® Software
This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.
System Requirements for Data Logging or Changing Defaults
- Windows XP SP2 or newer
- Microsoft .Net 3.5 Runtime Libraries
Accessories
. Custom USB cable enables RS485 Modbus RTU communication to GasLab Software for MX Sensor Board and Development Kit.
includes all the tools you need to utilize the tube-cap adapters as part of a sampling sensor system.
is a highly selective, semi-permeable membrane to water vapor. If gases inside Nafion tubing are wetter than gases surrounding the tubing, drying will occur. If the surrounding gases are wetter, humidification will occur.
provide a constant flow of air across the sensor with a tube cap - perfect for bench-top testing of sensors for closed-loop sampling applications.
Sensor Pin Sockets - Manufacturers do not recommend soldering to the pins. Pin sockets can be purchased from Andon distributors. . Select the brand PDF, find your sensor, then search for the Andon part number for your sensor's socket.
