Product Details
＋

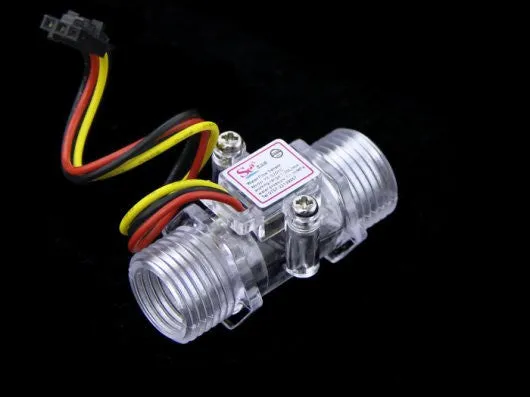

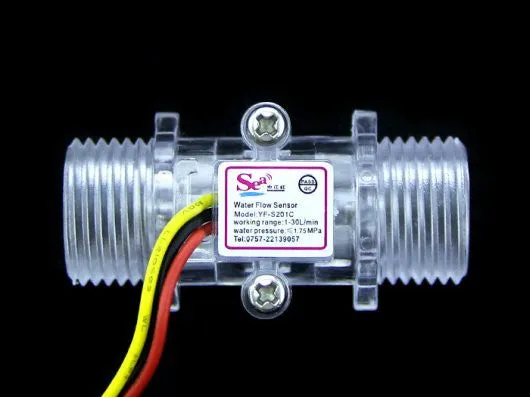

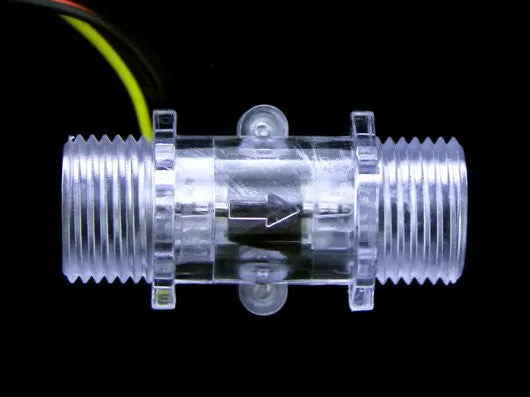

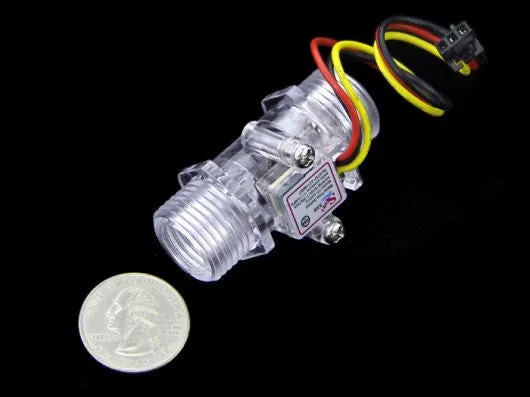

This G1/2" Water Flow Sensor Enclosure contains a plastic valve body, a water rotor, and a hall-effect sensor. The rotor rotates in accordance with rate of water flow; the hall-effect sensor then emits a corresponding pulse signal. This product is ideal for use in water fountains or coffee machines. A variety of water flow sensors in various diameters are also available; you are sure to find one to suit your particular needs.
Feature:
- Compact, Easy to Install
- High Sealing Performance
- High Quality Hall Effect Sensor
- RoHS Compliant
- Transparent
Specification：
- Mini. Wokring Voltage: DC 4.5V
- Max. Working Current: 15mA (DC 5V)
- Working Voltage: DC 5V~24V
- Flow Rate Range: 1~30L/min
- Flow Pulse: F(Hz)=(5.0*Q)±3% Q=L/Min
- Load Capacity: ≤10mA (DC 5V)
- Operating Temperature: ≤80℃
- Liquid Temperature: ≤120℃
- Operating Humidity: 35%～90%RH
- Water Pressure: ≤1.75MPa
- Storage Temperature: -25～ 80℃
- Storage Humidity: 25%～95%RH
