Product Details
＋
The ECO-5011A-01 High Accuracy EC 0-1000ppm CO Gas Sensor is designed to meet UL2034, EN50291 and ROHS application requirements.
This gas sensor is ideal for battery powered applications with low power requirements. It also offers environmentally friendly electrolytes with robust sensor packaging to ensure technology wont leak.
Features
- High Accuracy CO Measurement: /-5ppm or 5%
- Designed for battery powered applications
- Long Lifespan 10 years
- UART Output for streamlined integration
- High Selectivity to CO and Great Repeatability
Models:

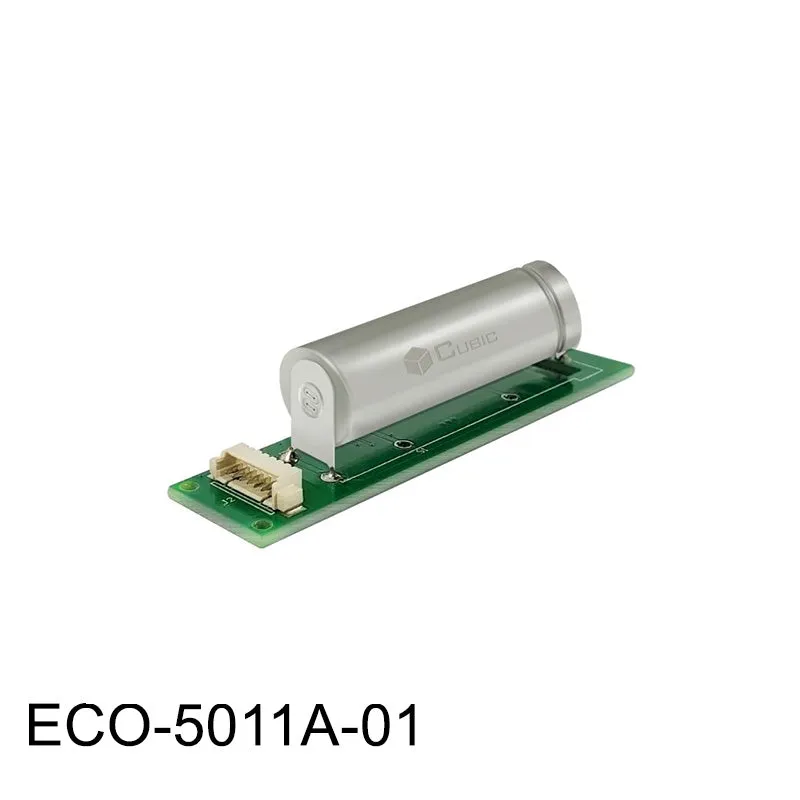

ECO-5011A-01 - High Accuracy 0-1000ppm CO Gas Sensor
Specifications
- Accuracy: /-5ppm or /-5%, whichever is larger
- Response Time: <60s
- Measurement Range: 0 to 1,000ppm
- Resolution: 0.5ppm
- Repeatability: /-2% of reading
- Temperature Range: -4˚F to 140˚F (-20˚C to 60˚C)
- Humidity Range: 5 to 99% RH
- Communication Interface: UART
- Dimensions: 60 mm x 17 mm x 20 mm
- Weight: 20g
- Life Expectancy: >10 years
Warranty
- 90 Days. See CO2Meter Terms and Conditions
