Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Contact Form | SPDT |
| Current Rating | 10 A |
| Frequency | 50⁄60 Hz |
| Input Type | Voltage |
| Isolation Voltage | 2000 VAC |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -10 °C |
| Mounting Style | Plug-In |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Operating Temperature | -10 to 60 °C |
| Output Type | Relay |
| Power Rating | 2 VA |
| Primary Type | Controller |

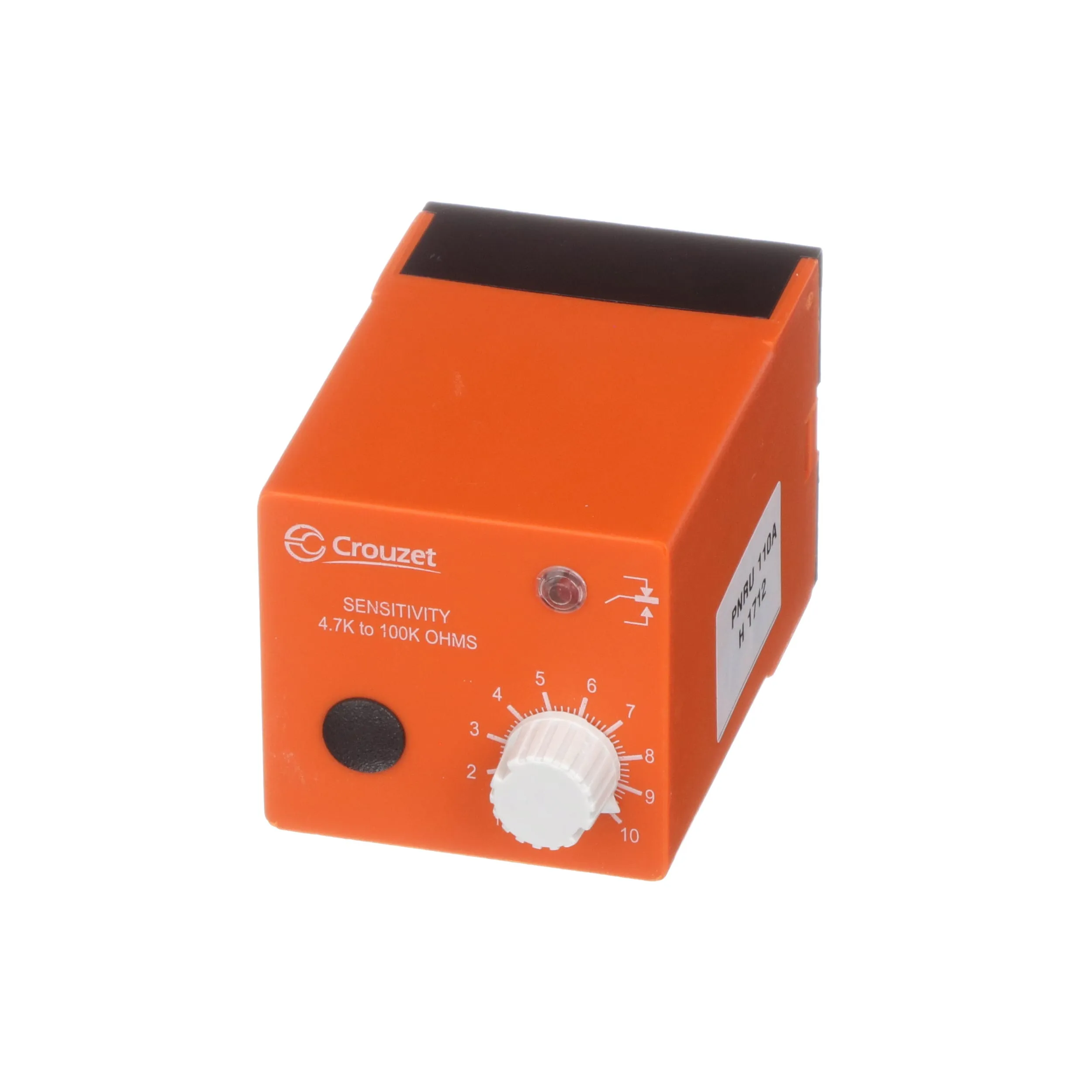

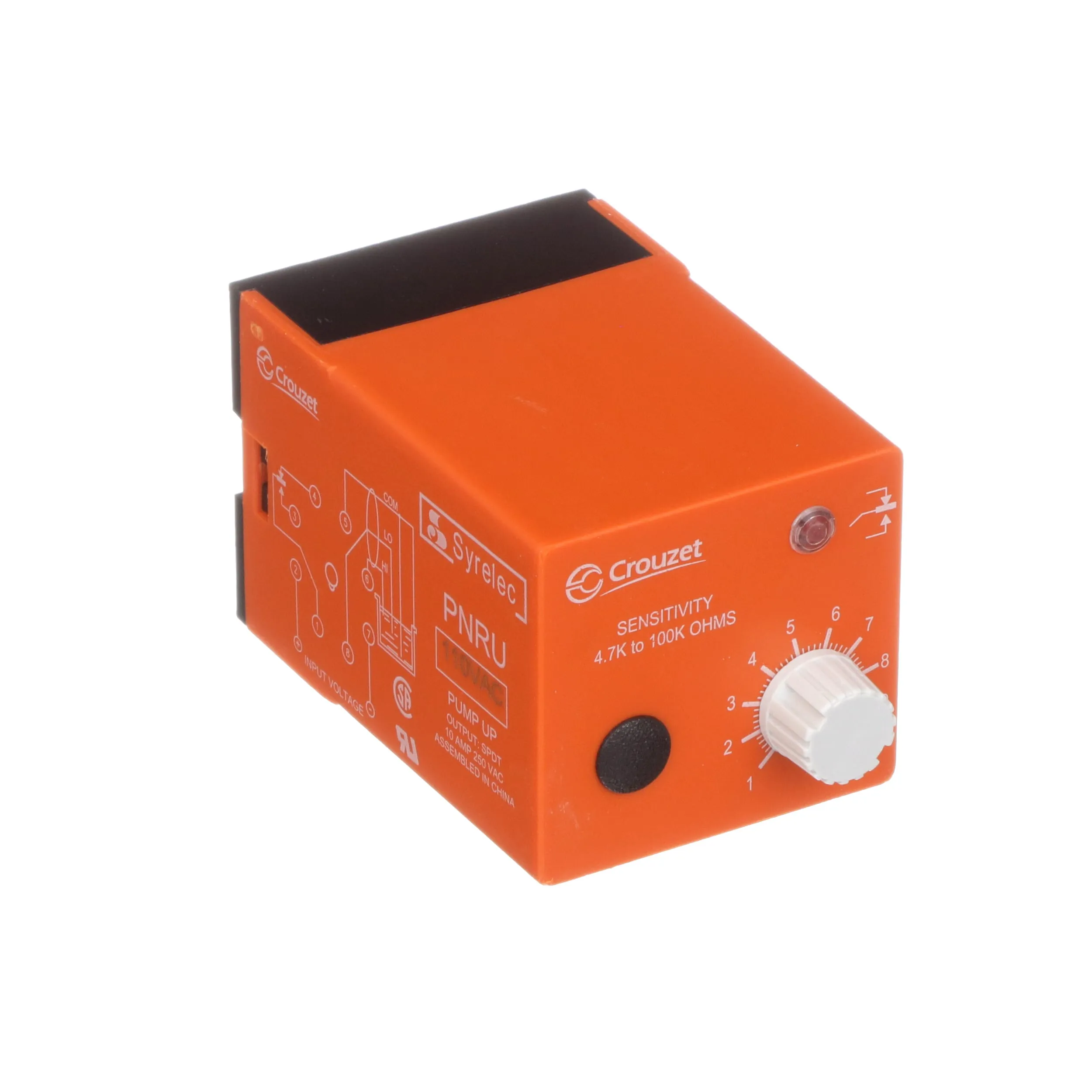

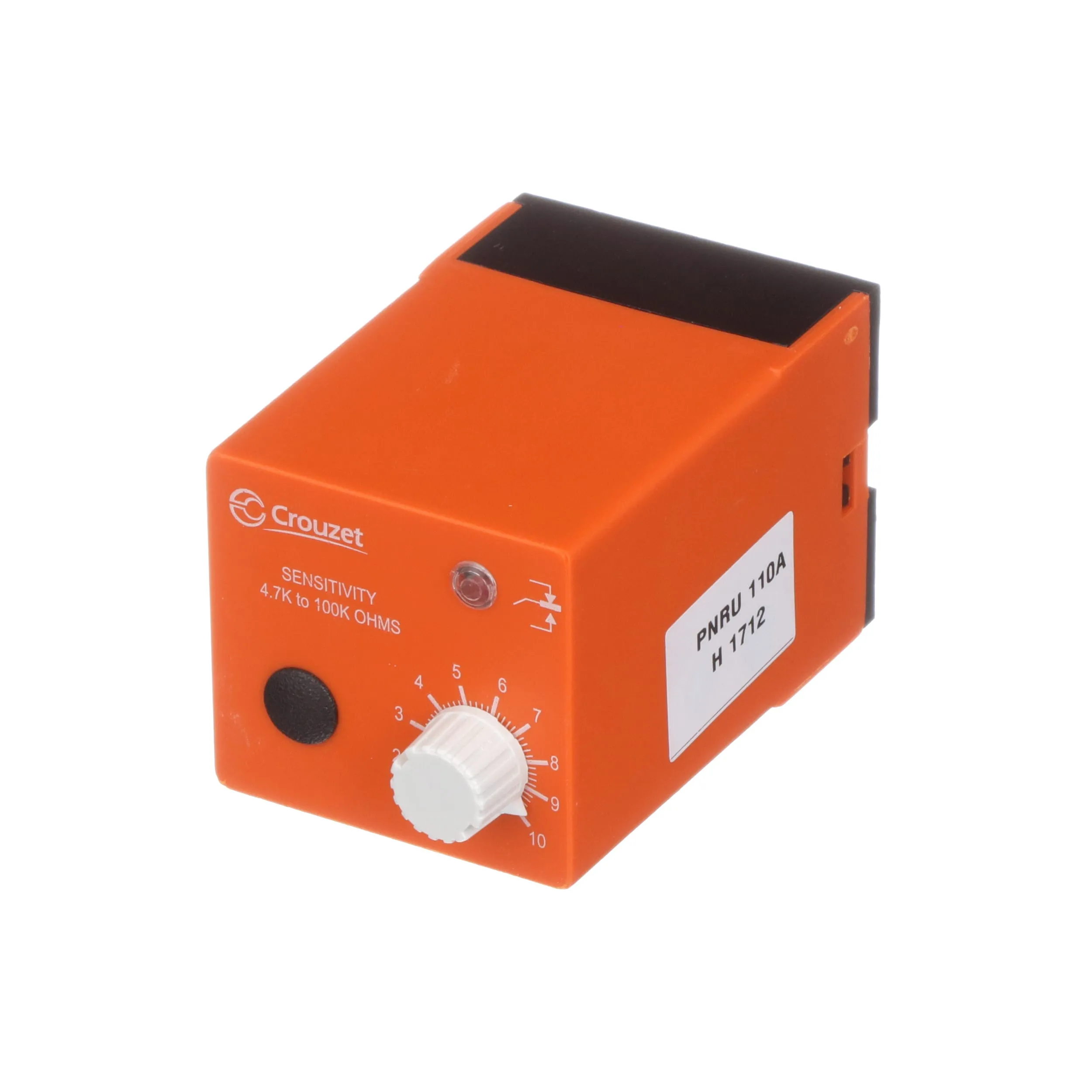

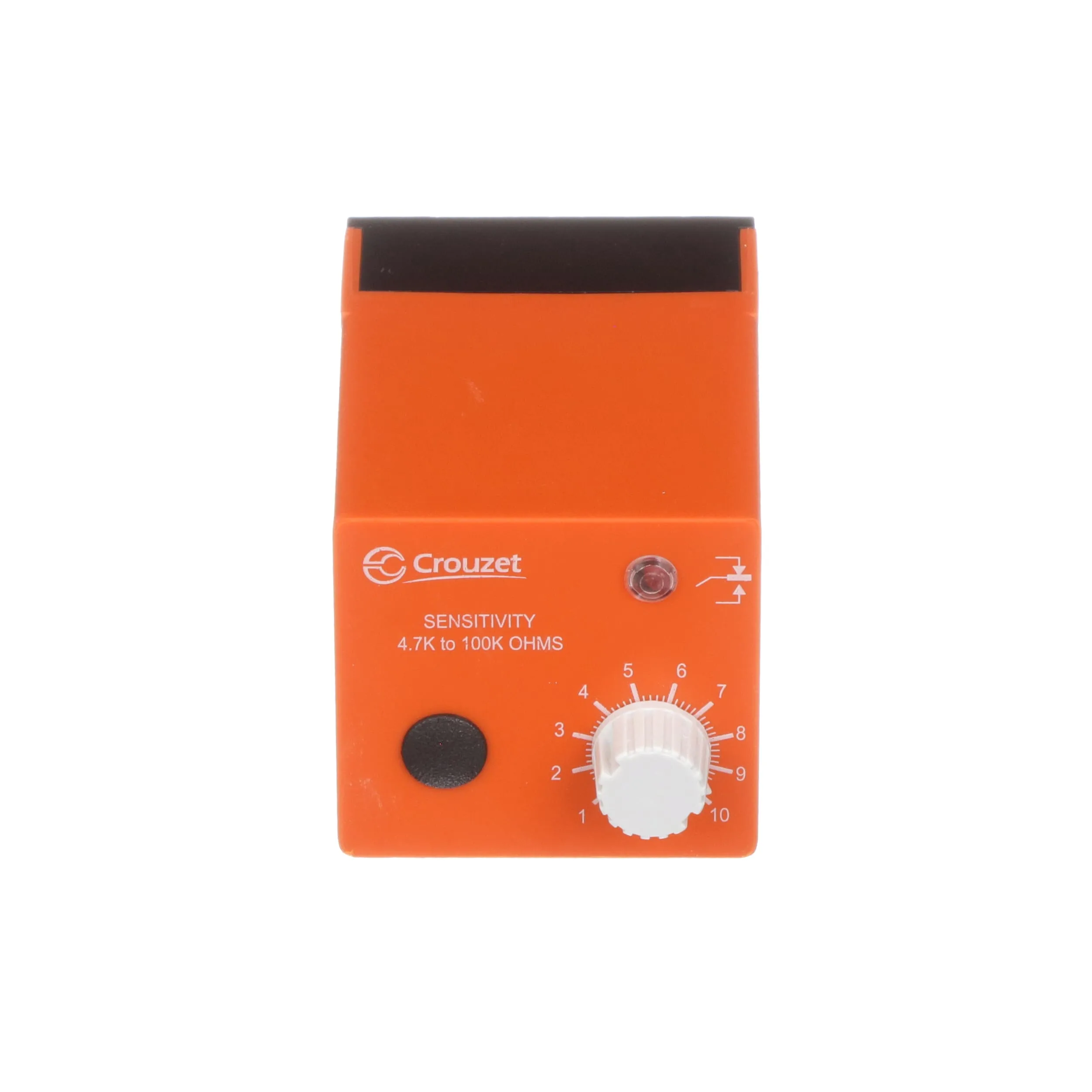

| Product Header | NRU Series Liquid Level Controller |
| Sensitivity | 4.7 to 100 Kiloohms |
| Series | |
| Standards | CSA, UL |
| Supply Voltage | 110 VAC |
| Temperature Operating Range | -10 to 60 °C |

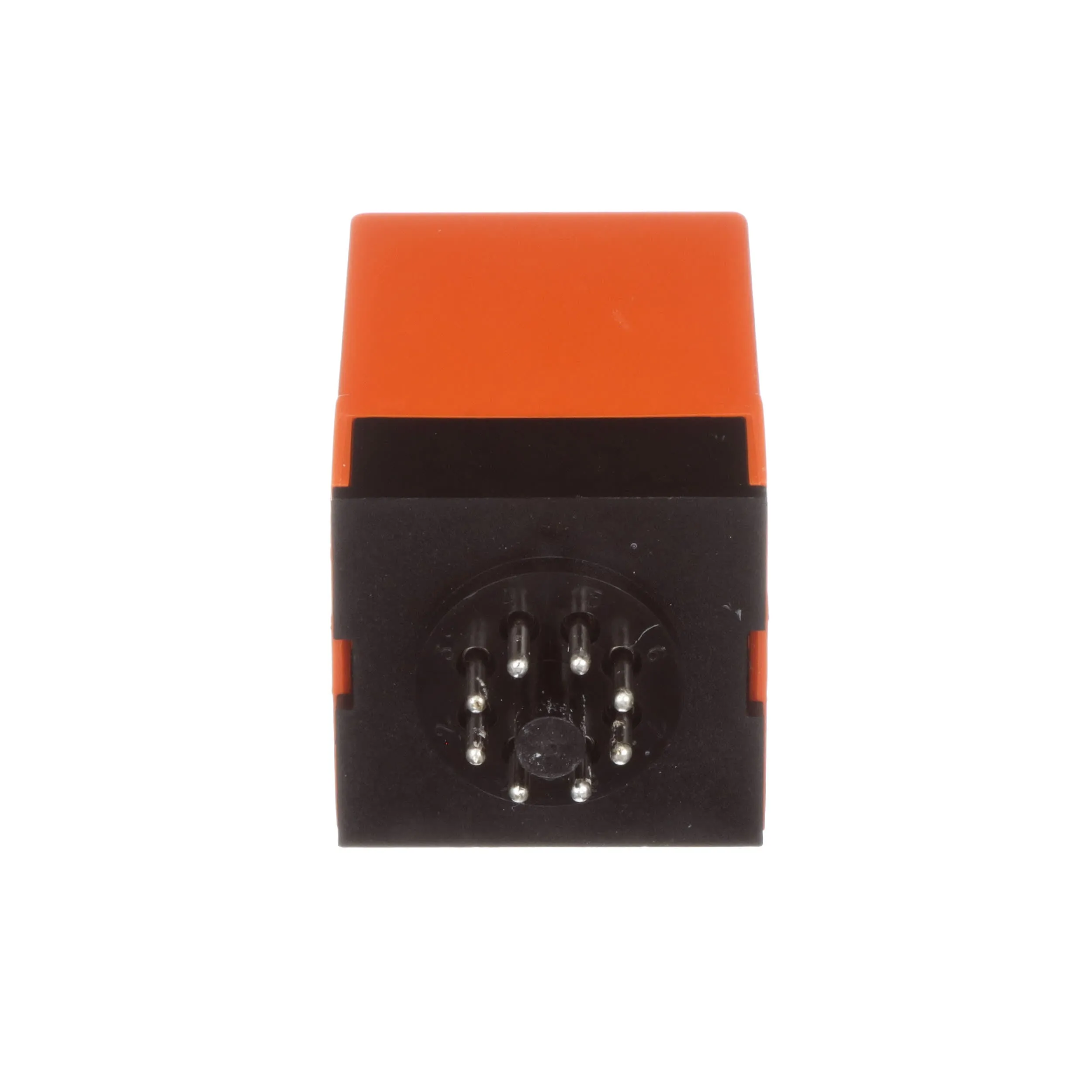

| Termination | 8 Pin |
| Type | Liquid Level Controller |
| Voltage Rating | 110 VAC |
| Weight | 7 Oz. |
Overview
Crouzet's Liquid Level Controls are ideal for monitoring conductive liquids (water, seawater, chemicals, waste water, etc.) applications for agri-foodstuffs and chemical solutions. Also perfect for monitoring moisture and water leaking into pump oil supplies. The probes uses a low current AC signal to avoid electrolysis.
