Product Details
＋
Overview

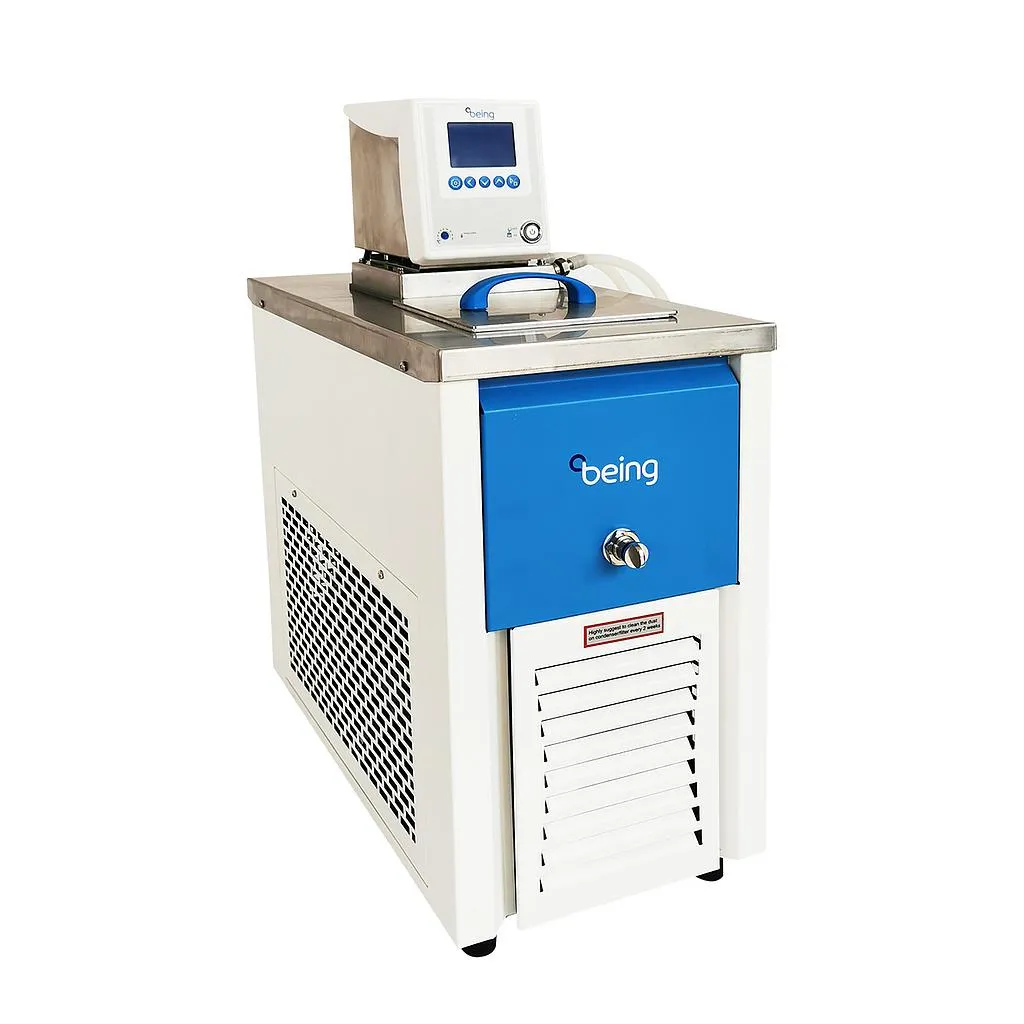

The BEING heating/cooling circulating baths offer a variety of sizes to accommodate your laboratory needs. With a user friendly PID controller offering a large LCD screen for easy viewing. They are constructed for durability, high performance and safety.
Features:
- PID temperature controller.
- CFC-free R404A refrigerant and a double service valve to prevent leakage.
- Programmable function with 7 progs and 9 steps in total.

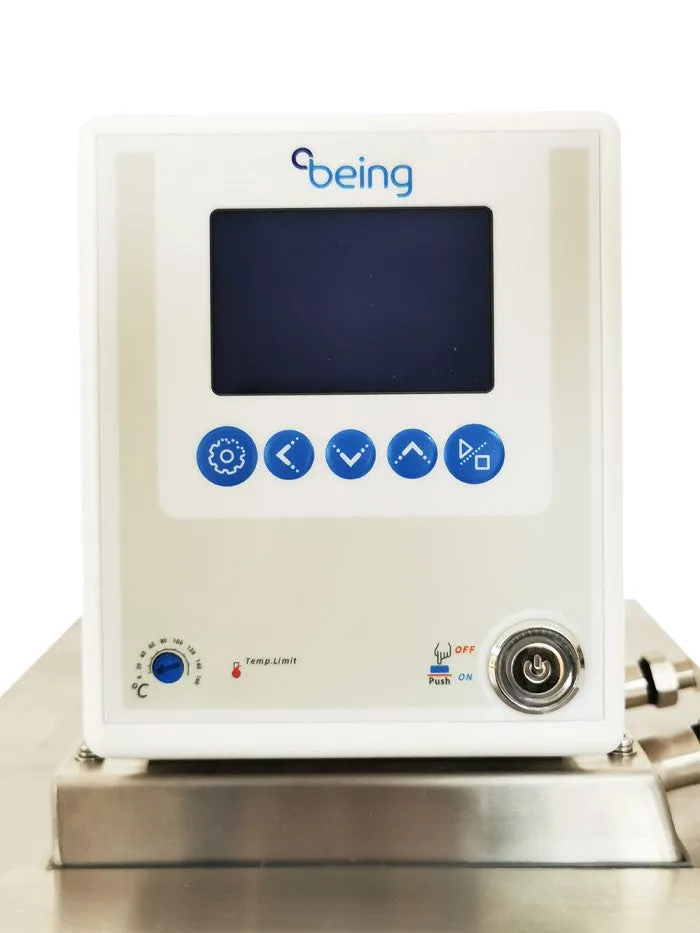

- Bright LCD display with a quickly adjustable dial knob. (0.1℃ resolution)
- Easy to set dual wait on/off adjustable timer (1 minute to 99 hr. 59 min.).
- Maintenance-free operation with easy to clean surface.
- Variety of accessories is available to meet application demands.
- Both heater and bath chamber are made of corrosion-resistant, leakproof stainless steel.
- Rounded cornered bath chamber and quick-release front grill allow for easy cleaning of the bath and condenser.
- The standard stainless-steel bottom plate helps prevent direct contact by accessories and tubes to heating element and sensors.
- Easy to access drain valve makes emptying of bathwater fast and easy for cleaning and moving.
- Preset On/Off function.
- Built-in power interruption protection function, automatic run after power interruption.
- Independent Over-temperature protection meets DIN 12880 International standard requirements.
- Temperature deviation alarm.
- Over-current protection alarm.
Key Attributes
| Type | Circulating Baths |
| Incubation | Yes |
| Refrigeration | Yes |
| Temp Range (°C) | -20 to 150 |
| Capacity (L) | 4.5, 13 |
| Circulation | External |
| Brand | Being |
| MaxFlow Rate (l/min) | 10, 27 |
| Temp Stability (°C) | ±0.1 |
| Timer | Yes |
| Alarms | Yes |
| Digital or Mechanical | Digital |
| Data connection | No |
| Tank Material | Stainless Steel |
| Sample Agitation | No |
| Media Racks Available | No |
| Warranty (years) | 2 years |
| Weight (lb) | 30, 90 |
Manufacturer Specifications
| Storage Tank Capacity (L) | 4.5 | 13 |
| Cooling Features | ||
| Lowest Temp Without Load (℃) | –20℃ | –20℃ |
| Temperature Range (℃) | –20℃ — 150℃ | –20℃ — 150℃ |
| Best Operating Temp (℃) | ≤35 | ≤35 |
| Relative Humidity (%RH) | ≤65 | ≤65 |
| Temperature Stability (℃) | ±0.1℃ | ±0.1℃ |
| Cooling Capacity (w) at (0℃) | 560 | 560 |
| Cooling Capacity (w) at (–20℃) | 160 | 160 |
| Heating Power Consumption (kW) | 1000 | 1000 |
| Refrigerant | R404A | R404A |
| Application Features | ||
| Temperature Sensor | pt100 | pt100 |
| Controller Display | LCD | LCD |
| Safety Protection | Compressor delay start, Leakage circuit breaker, Over current / Overvoltage Protection | Compressor delay start, Leakage circuit breaker, Over current / Overvoltage Protection |
| Total Power Consumption (W) | 1500 | 1500 |
| Power Requirement | 120VAC ±10% / 60Hz | 120VAC ±10% / 60Hz |
