- Long range diffuse IR pattern
- Low or high mounting position
- Compact size
- Easy to install
- Bracket included
- Range: 1.5m
- Cable: 2m (6.5 ft)

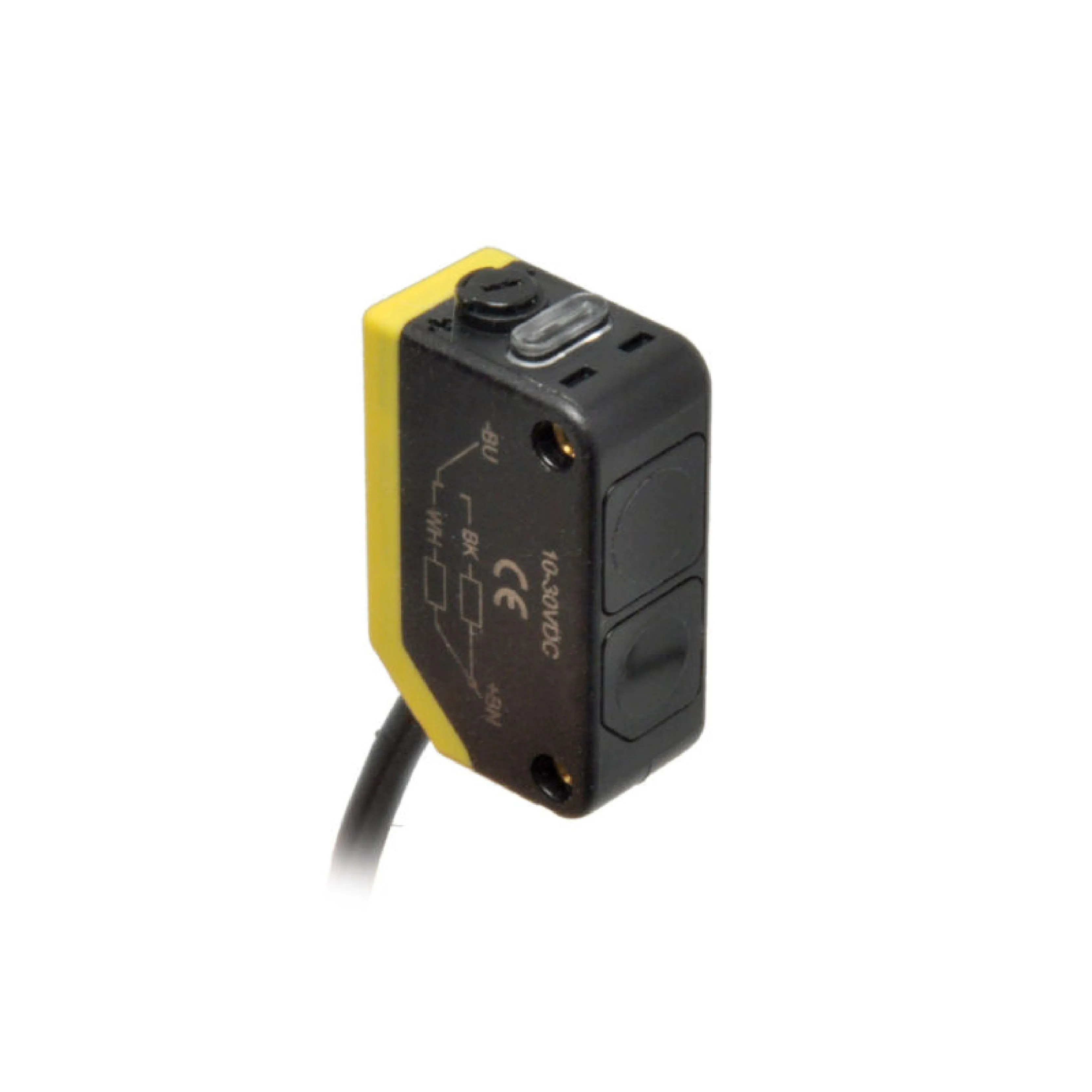

The 1547B connects to the 1520 Lane Station via a Cat 5 cable. When traffic is present, the sensor sends a siglnal to the Counter Station, triggering a call tone (see for call tone setup).
This versitile, compact sensor has long range sensitivity which makes it ideal for mounting low to the ground, in applications such as drive-up lane units, or in a higher position, as in deal drawers and drive-up or walk-up windows and ATMs. The mounting bracket allows mounting to any vertical surface, and the integral threaded holes do not requre nuts.
Features:
-
Photoelectric sensors in a compact, rugged, sealed, over-molded plastic housing ensure long lasting performance in outdoor conditions
-
Includes bracket and two 3mm screws for mounting on any vertical surface
-
Rectangular design with 45º angle cable connection is easy to mount in tight spaces
- Threaded mounting holes eliminate the need for mounting nuts.
-
3mm threaded mounting holes on 25.4mm (1") spacing
-
High immunity to noise and cross-talk
- Single-turn Gain potentiometer and bright LEDs provide easy alignment and configuration for reliable sensing
-
10 to 30V DC operation with complementary solid-state outputs (1 normally open, 1 normally closed)
-
Exceptional optical performance with easy-to-align visible red emitters
-
Background suppression provides reliable detection up to 150 mm while ignoring objects in the background
-
Stable detection in the presence of fluorescent lights
Specifications
| Sensing Mode (General) | Proximity | |
|---|---|---|
| Sensing Mode (Specific) | Diffuse | |
| Sensing Beam | Infrared LED | |
| Max Sensing Range | 1.5M | |
| Supply Voltage | 10-30 V dc | |
| Output Type | NPN | |
| Operation | Light/Dark | |
| Output response time (ms) | 0.8 | |
| Delay at Power-up (ms) | 100 | |
| Repeatability (µs) | 155 | |
| Connection | 2 m RJ-45 Cable | |
| Number of Pins | 4 | |
| IP Rating | IP67 | |
| NEMA Rating | NEMA 6 | |
| Min Op. Temperature (°C) | -20 | |
| Max Op. Temperature (°C) | 60 | |
| Max Op. Relative Humidity (%) | 95% @ 50°C | |
| Basic Housing Material | Thermoplastic | |
| Housing Style | Rectangular | |
| Adjustments | Potentiometer |
