The Triplett Model TMDL400 4-Channel Type K Thermocouple Datalogger is a precision instrument for comprehensive temperature monitoring..
DESCRIPTION

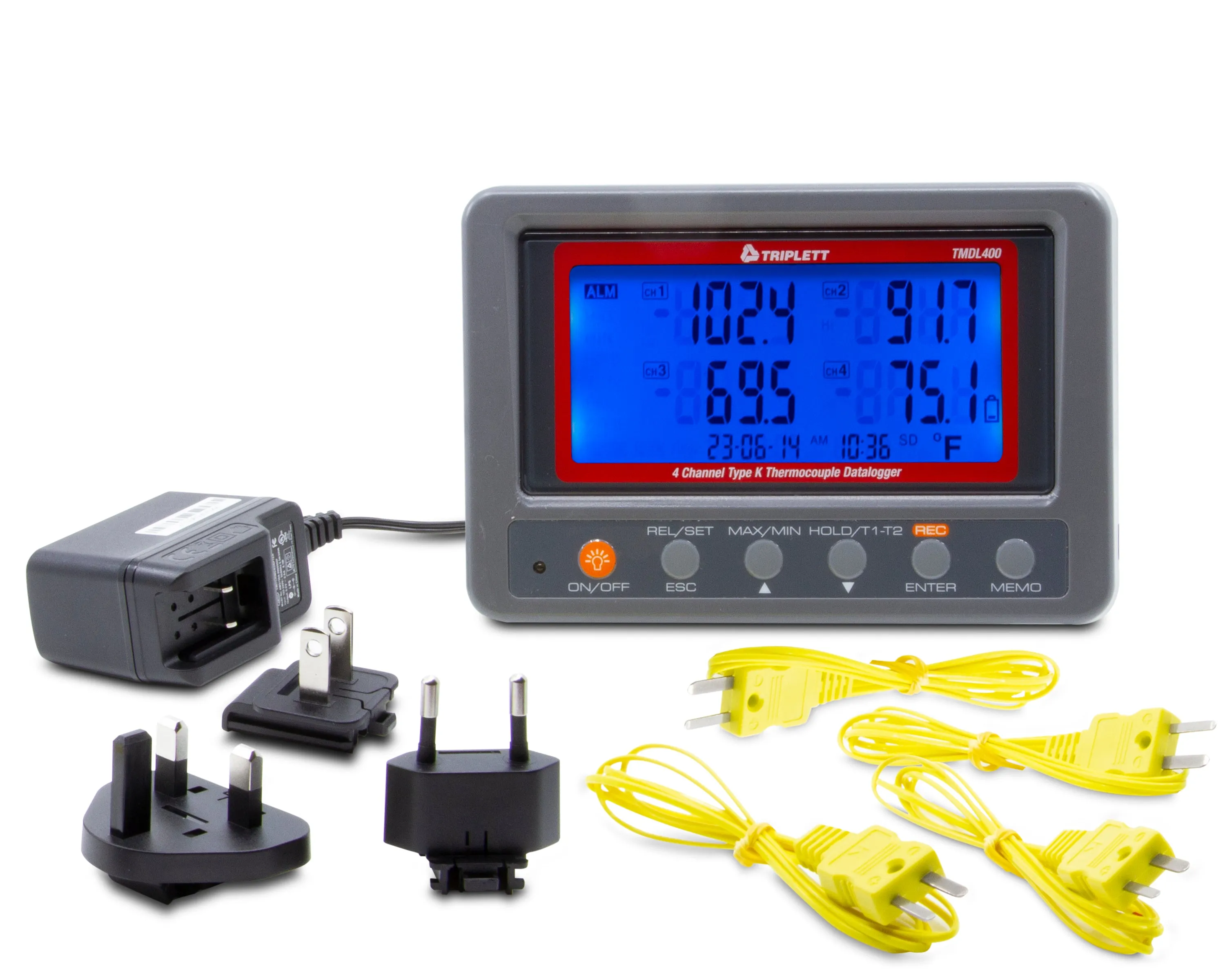

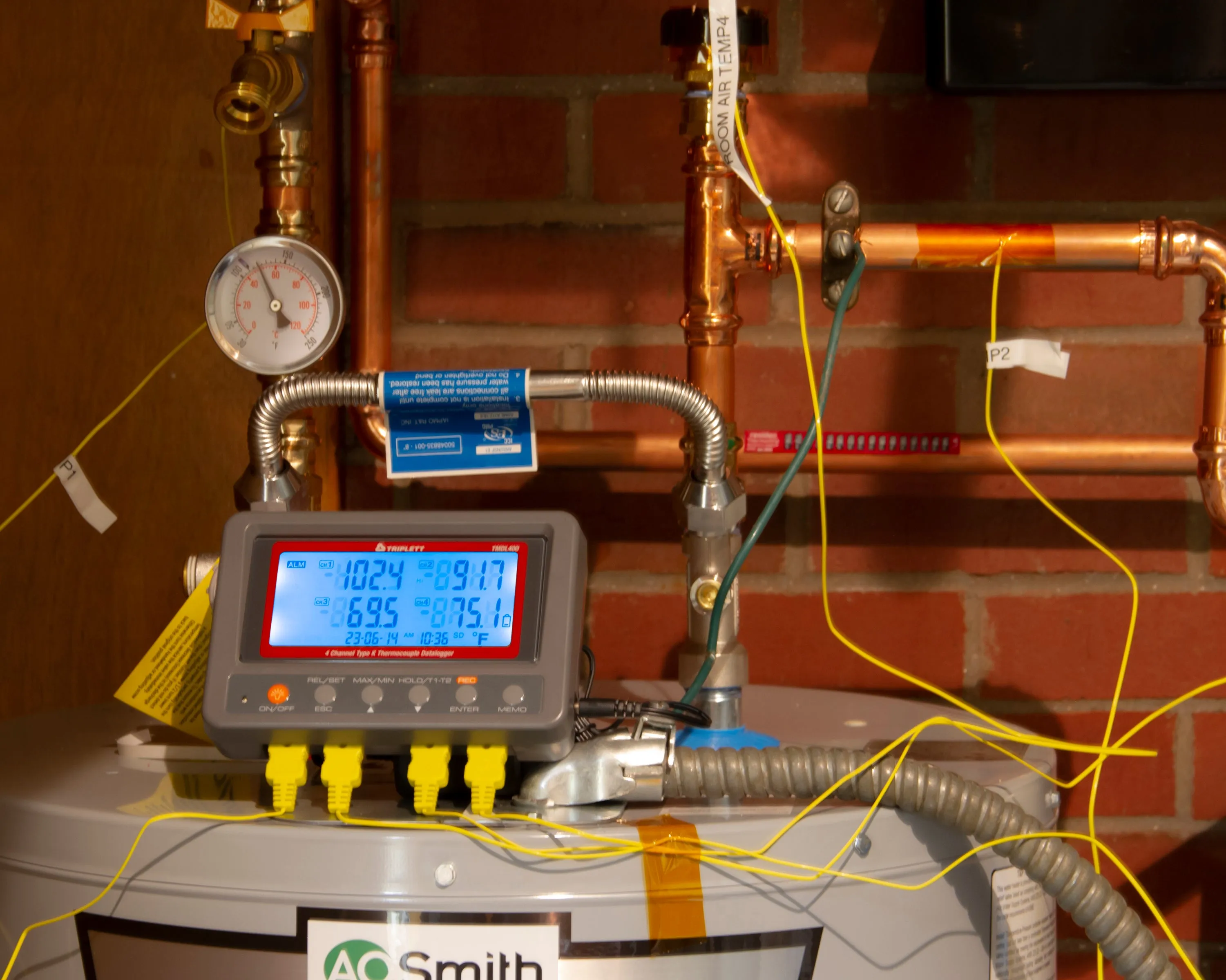

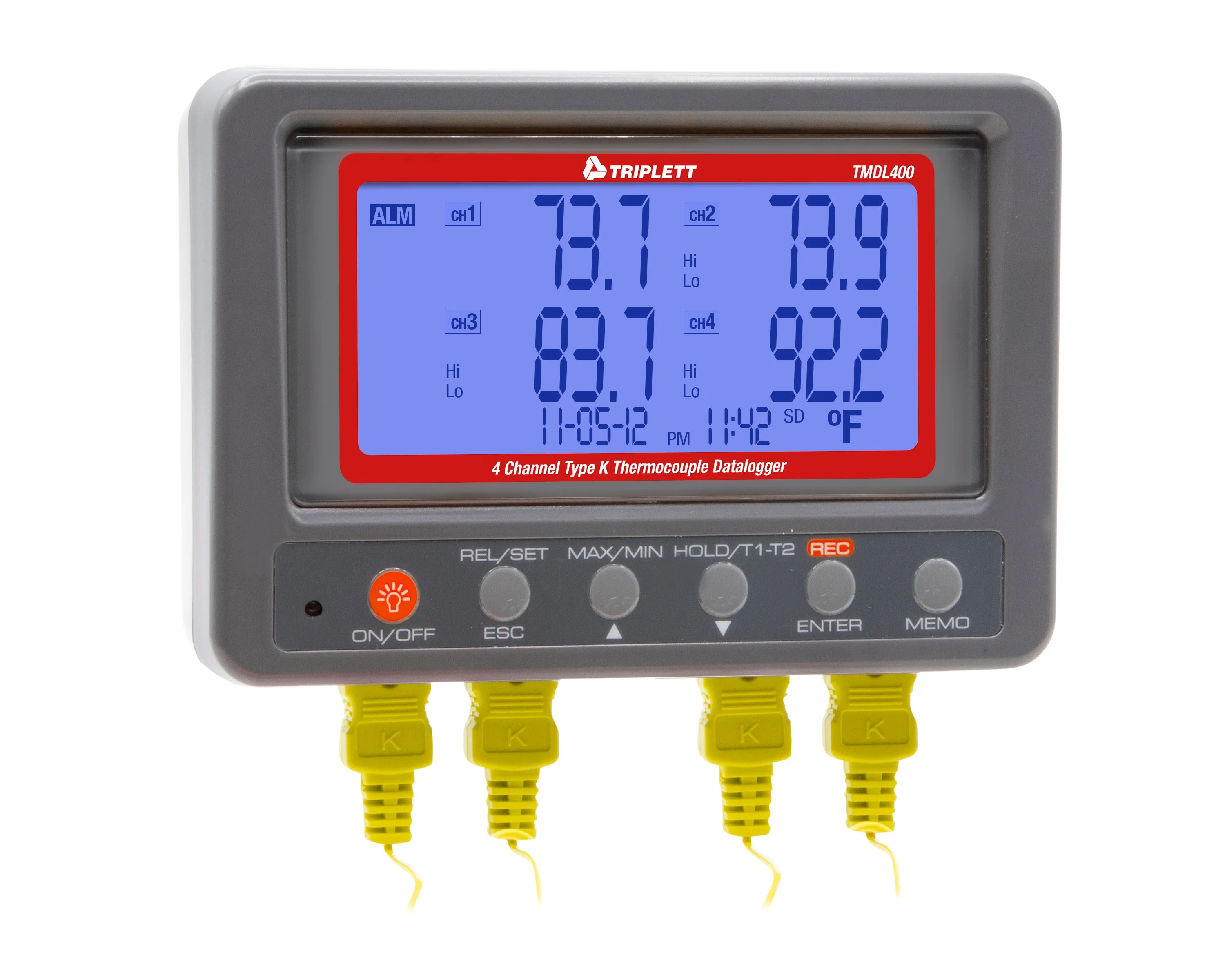

The Triplett Model TMDL400 4-Channel Type K Thermocouple Datalogger is a precision instrument for comprehensive temperature monitoring. Equipped with a backlit LCD, this datalogger simultaneously displays temperature readings across four channels, along with date, time, and T1-T2. Its versatile functionality enables measurements of surface temperatures of solids, liquids, and ambient air temperature. The TMDL400 can datalog multiple files, each containing up to 30,000 readings, with a customizable sampling rate between 1 second to 90 minutes. Features include a programmable start time, user-configurable audible and visual high/low alarms per channel, and an adjustable offset for probe compensation. Also included are Min/Max recording capabilities, a Data Hold function, and an auto power-off feature with disable function to conserve battery life. This wall-mountable device Includes (4) AA batteries, (4) Type K Thermocouple bead probes, SD Card, and Universal AC Adapter (100-240V) with 3 plugs (US,UK, EU). 1-year warranty.
CATEGORY:
Features
- Multi-Channel Display: Backlit LCD simultaneously displays four-channel temperature, date, time, and T1-T2.
- High-Capacity Datalogging: Datalogs multiple files, each containing up to 30,000 readings.
- Adjustable Sampling Rate: Features a customizable sampling rate from 1 second to 90 minutes.
- Programmable Alerts: User-programmable audible and visual high/low alarms for each channel.
- Probe Compensation: Adjustable offset for probe compensation on each channel.
- T1-T2 Display: One-button operation for displaying T1-T2 (Channel 1 - Channel 2 only).
- Min/Max Records: Captures and stores the highest and lowest readings over time.
- Data Hold Function: Freezes readings on the display for easy viewing.
- Auto Power-Off & Wall-Mountable: Offers an auto power-off feature with disable for battery conservation and can be conveniently mounted on the wall for easy access.
- Includes: 4 AA batteries, (4) Type K Thermocouple bead probes, SD Card, and Universal AC Adapter (100-240V) with 3 plugs (US,UK, EU)
Specifications
| TMDL400 | |
| Number of Inputs | 4 |
| Temperature Range | -328 to 2498°F (-200 to 1370°C) |
| Accuracy | ±(0.3% 1.8°F/1°C) |
| Resolution | 0.1°F/°C |
| T1-T2 | Channel 1 - Channel 2 only |
| High/Low Alarms | adjustable for each channel |
| Temperature Offset | adjustable for each channel |
| Memory | SD Card |
| Datalogging | 30,000 records per data file |
| Sampling Rate | 1 second to 90 minutes |
| Power | (4) AA batteries or AC adapter |
| Dimensions | 6 x 4 x 1.5” (152 x 100 x 39mm) |
| Weight | 10.6oz (300g) |
