Product Details
＋

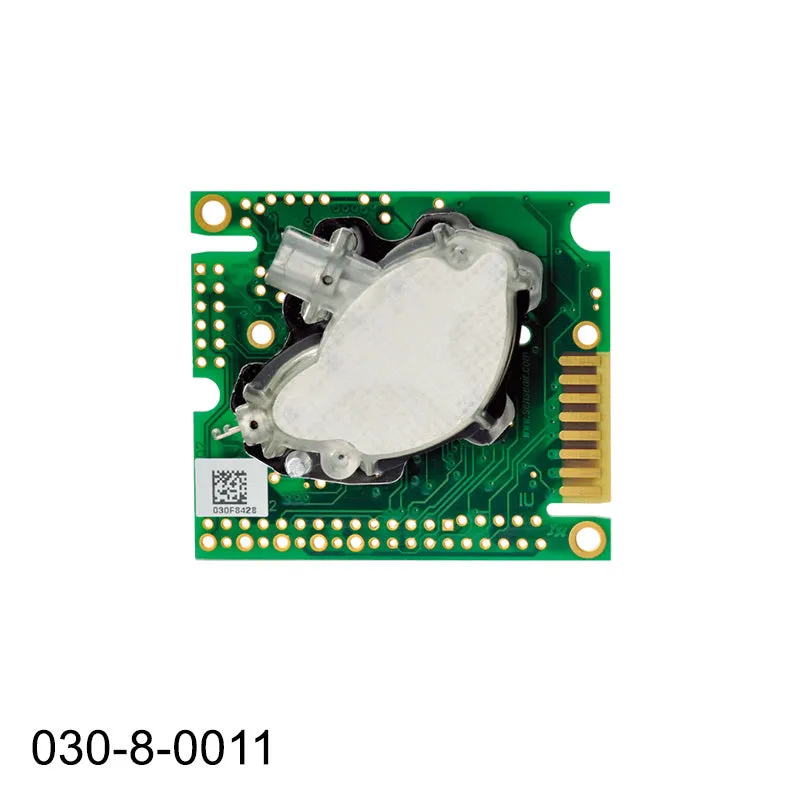

The K30 Extended Range Sensor (030-8-0011) is intended to be built into devices that require up to 5,000 ppm CO2 monitoring or measurement.
It is an accurate, proven, low-cost solution for OEMs who want to integrate CO2 sensing into their products, research, or studies.
Features
- Simple to install, pre-calibrated and ready-to-use
- Proven reliability, low cost
- Maintenance free in normal applications
- Flexible analog and digital outputs
Models
- K30 Extended Range CO2 Sensor (030-8-0011) - For integration into high-volume OEM products.
- Sensor Development Kit (CM-200) - Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free to measure and graph carbon dioxide or use our to build your own application or for OEM batch testing/configuration. Order sensors on this page, then .
We recommend that all first time users purchase both this sensor and the CM-200 Development Kit for fastest and easiest results.
Specifications
- CO2 Measurement: non-dispersive infrared (NDIR)
- Measurement Range: 0 – 5,000ppm, Up to 10,000 ppm extended range
- Rate of Measurement: 0.5 Hz
- Response Time Diffusion: 20 seconds
- Warm-up Time: < 1 min.
- Outputs. 2 analog, 2 digital
- Scalable Analog voltage outputs
- Operating Temperature:
- Operating Humidity:
- Repeatability: ± 20 ppm ± 1 % of measured value within specifications
- Accuracy: ± 30 ppm ± 3 % of measured value within specifications
- Maintenance Interval: no maintenance required
- Self-Diagnostics: complete function check at startup
- ABC (Automatic Background Calibration) enabled unless specified
- Dimensions: 51 mm x 58 mm x 12 mm
- Sensor Life Expectancy: > 15 years
Conforms with Standards
- Emission: EN61000-6-3:2001
- Immunity: EN61000-6-2:2001
- RoHS directive 2002/95/EG
Electrical / Mechanical
- Power Input: 4.5-140 VD C maximum rating (without reverse polarity protection)
- Current Consumption: 40 mA average,
Warranty
- 90 days - See
Accessories
- - designed to provide customers with an easy drop-in solution. Includes our free . Sensor sold separately.
- changes the sensor from reading CO2 in the air to a sample draw sensor. Use with a pump, tubing and filters to read CO2 levels in enclosed containers
- includes all the components you need with a sample draw sensor.
- . Includes hydrophobic filters, protects the sensor when used in hostile environments.
